Virtualization helps businesses optimize their computing resources to achieve the highest efficiency and performance – the two vital aspects of smooth operations. Well, bare metal hypervisors offer a unique approach to virtualization. Many enterprises utilize this approach to improve their computing efficiency and technical experts use its ability to enhance the performance of their applications. Further, Their hardware costs are reduced and management is simplified through this innovative solution.
But, what is a Bare Metal Hypervisor? We will discuss this and other related aspects in detail in this exhaustive blog. Let us first start with the definition of hypervisor.
What is a Hypervisor
A hypervisor is a software layer for virtualization. It enables a single physical machine to have multiple virtual machines (VMs)/operating systems. Thus, it separates the server’s hardware from its operating systems and applications so that various VMs run simultaneously without interference. It ensures smooth operations and manages the hardware resources for the same. All in all, each operating system functions independently using a hypervisor.
Hypervisors are mainly of 2 types – Bare Metal Hypervisors and Hosted Hypervisors. They are explained below –
What is a Bare Metal Hypervisor (TYPE 1)
This technology is very crucial for modern data centers and cloud computing. It provides the foundation for efficient and flexible IT infrastructure.
Well, when the hypervisor is installed directly on the physical hardware it is called Type 1 hypervisor or bare metal hypervisor. It enables independent operations of any operating system. Also, it provides the benefits of optimal performance and resource management because it is directly integrated with the hardware resources.
Moreover, its function is to allocate resources among multiple virtual machines (VMs) in an efficient way. Further, it ensures enhanced security with the isolation between VMs. Another essential benefit is scalability – add or remove VMs based on business needs to scale easily. Some bare metal hypervisors can be installed at the firmware level which can further enhance efficiency.
Related: What is a Bare Metal Server?
Features of a Bare Metal Hypervisor
-
Direct Installation
A bare metal hypervisor installs directly on the hardware of a server. So, you do need a traditional operating system.
-
Virtual Machine Management
It ensures smooth operations by managing the creation, operation, and monitoring of VMs.
-
Resource Utilization
Physical resource utilization (CPU, Storage, RAM) becomes efficient for running multiple VMs on a single server.
-
Isolation of VMs
The hypervisor keeps VMs separate from one another. Thus, the performance of one does not affect others.
-
Support for Multiple OS
A bare metal hypervisor allows different operating systems to run on the same hardware so you have diverse application environments.
-
Improved Resource Management
The hypervisor optimizes the use of network bandwidth and storage as it handles all interactions between VMs and the physical server.
Benefits and Drawbacks of Bare Metal Hypervisors
Bare metal hypervisors provide a robust solution for the optimization of virtual machine (VM) operations. However, the below pros and cons will give complete clarity on this technology.
Pros of Bare Metal Hypervisors
-
Rapid VM Creation
The instant deployment with quick set-up and running of multiple virtual machines supports agile business operations.
-
Cost and Energy Efficiency
You can operate numerous VMs on a single hardware setup in a cost-effective way. Also, you do not need multiple servers and this lowers energy consumption.
-
Hardware Compatibility
Bare metal hypervisors allow various operating systems and applications to run on different hardware types. This versatility eliminates dependence on OS-specific devices.
-
Direct Resource Interaction
Direct interaction with the hardware resources of host computers enhances performance and resource allocation.
-
Simultaneous VM Operation
Bare metal hypervisors prevent interference between VMs due to the simultaneous allocation of resources to several VMs at once with isolation intact.
-
Reduced Latency
An additional operating system layer is not required with the bare metal hypervisors. Thus, it reduces latency and improves overall system responsiveness.
-
Enhanced Security
Their architecture with no intermediary OS layer provides superior security as it reduces the attack surface for potential vulnerabilities.
-
Improved VM Portability
You can easily adjust the resources based on networking, memory, or processing needs. This hypervisor architecture facilitates the easy movement of VMs across different host computers.
-
Direct Hardware Control
Complete control over the system is possible and this further enhances management capabilities.
-
Optimized Performance
VMs can operate at the maximum speed of the host resources with direct access to hardware resources.
-
Scalability
Bare metal hypervisors support the creation of large failover clusters so you get the advantage of more efficient use of physical resources.
Cons of Bare Metal Hypervisors
-
Higher Initial Cost
The deployment cost is higher mainly due to hardware requirements so it requires significant upfront investments.
-
Increased Complexity
Management of this setup and resources need technical expertise. Thus, it is less accessible for those unfamiliar with the technology involving steep learning curve.
-
Need for Additional Management Tools
Separate management tools are necessary for successful implementation so it can complicate the setup process.
What is a Hosted Hypervisor (TYPE 2)
When a hypervisor operates within an existing OS on the physical machine it is called a Type 2 hypervisor/hosted hypervisor. Thus, it runs as an application on the parent OS. Also, the hardware resource management depends on the host OS. Due to this setup, it can introduce some latency. However, hosted hypervisors provide flexibility by allowing different operating systems to run within virtual machines.
Features of Hosted Hypervisors:
- OS Dependency to manage hardware resources and operations.
- Flexible VM Support to run various guest operating systems within VMs
- Ease of use for set up and management. Beneficial for individual users or small businesses.
- Cloud compatibility enables multiple users to share resources efficiently.
- They provide a simplified way to virtualize environments on traditional x86 hardware with pre-installed operating systems.
- The concern of latency issues is minimized with the advances in hardware acceleration.
How Does Bare Metal Hypervisor Work?
Hypervisors are a bridge between hardware resources and the software applications on the physical machine. Multiple virtual machines (VMs) can be created for you to run different operating systems and applications together without compatibility issues. Below are the steps outlining how hypervisors function:
- Hypervisors create independent virtual machines by allocating hardware resources like memory, CPU, and storage from the physical server. Thus, it simulates a separate server environment for each VM.
- It removes concerns related to compatibility with the hardware and allows you to install desired operating systems and applications on the VMs.
- They create, monitor, and manage the VMs for resource provisioning tasks so that the VMs get the necessary resources.
- Hypervisors schedule VM operations This function prevents resource contention among them and ensures that the performance of one VM does not negatively impact others on the hardware.
- For additional resources (like CPU power or bandwidth), VMs send a request to the hypervisor. It allocates the same and maintains optimal performance.
The Working of Bare Metal Virtualization
Bare metal hypervisors are installed directly on the hardware of the host machine. Then, each VM sets its own dedicated portion of the hardware resources (processing power, memory, and storage). Moreover, multiple VMs can run together on the same hardware without interference due to bare metal hypervisors. This isolation prevents crashes or security breaches too. The absence of a host operating system saves resources. Also, bare metal hypervisors can use a higher percentage of the physical resources available on the server.

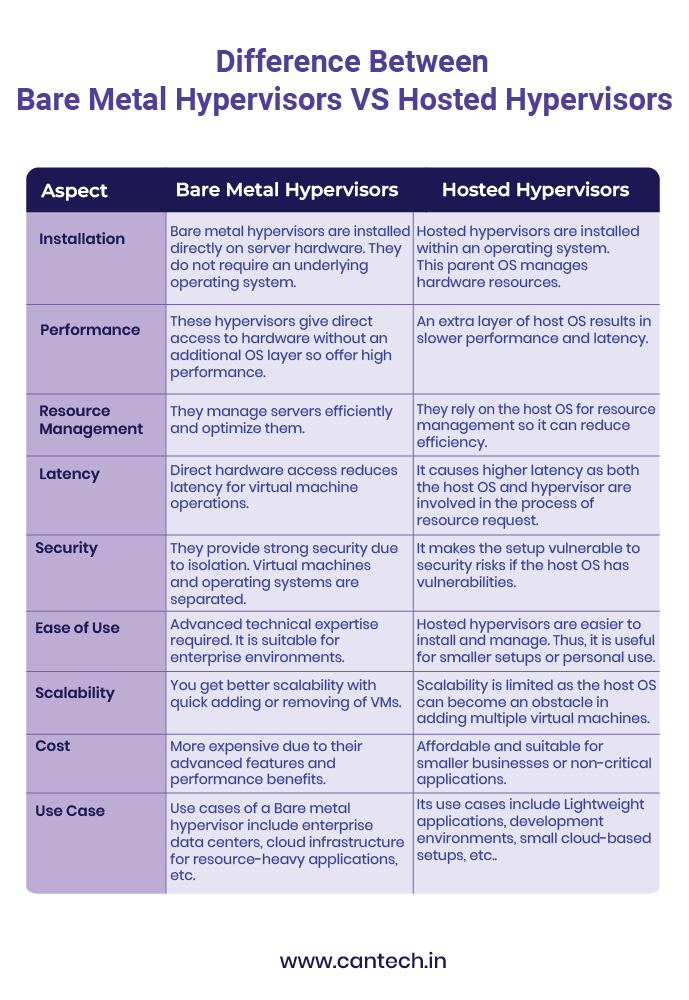

Bare Metal Hypervisors vs. Hosted Hypervisors – The Comparison
Here’s a detailed feature-wise comparison of Bare Metal Hypervisors vs. Hosted Hypervisors:
Related: Bare Metal vs Dedicated Server
Factors to Consider When Selecting a Hypervisor
The decision depends mainly on the specific needs of your environment. Both types of hypervisors have their individual advantages based on performance requirements, security, and intended use. Below are some key factors to consider while making your decision:
- Performance Requirements
Bare metal hypervisors are suitable for high performance, granular control, and strong security demands from the application. Thus, enterprise environments, data centers, and server farms are some of the use cases of Bare metal hypervisors that choose this type.
- Latency Tolerance
Hosted hypervisors are preferred where a small amount of latency is acceptable. Software development and end-user testing setups are some of the examples.
- Scalability
Bare metal hypervisors are highly scalable. Also, it can handle multiple virtual machines with high resource needs.
- Usage
Hosted hypervisors are preferred in non-critical applications like software testing. On the other hand, bare metal hypervisors are the best for resource-intensive operations like enterprise-level data centers.
- Vendor Options
Several vendors offer advanced bare metal hypervisors. Key providers include:
- Citrix Hypervisor (XenServer)
- VMware vSphere/ESXi
- Microsoft Hyper-V
- Red Hat Enterprise Virtualization (RHEV)
- Kernel-Based Virtual Machine (KVM)
- Virtual Machine Requirements
Evaluate the number of virtual machines that you require and the resource requirements for each machine.
- Research
You must research vendors carefully. They have different products and licensing options. Also, they offer various tools and functionalities.
Enterprise Infrastructure with Cantech Bare Metal Hypervisor
Cantech meets the comprehensive needs of modern enterprises with our powerful bare-metal server solutions. They deliver excellent performance with the flexibility and efficiency of a virtualization layer. Also, it enables speedy provisioning and seamless integration with cloud-based resources.
Our bare metal server in India provide reliable hardware and networking solutions to help you maintain complete control over the cloud environments.
Key technical features of our bare metal servers include:
- Single-tenant architecture for maximum resource availability and security.
- Robust performance with the latest hardware technologies to deliver high processing power and fast data access. We guarantee 99.97% uptime.
- Seamless scalability is based on the requirements of fluctuating workloads.
- Integrated cloud hypervisor technology allows you to deploy multiple virtual machines (VMs) limited only by their available resources.
- 24/7 Support with a dedicated team is available to assist you with any queries or technical issues.
Conclusion
The answer to ‘What is a Bare metal hypervisor?’ is that it offers an advanced solution for businesses who need high performance and security in their virtual environments. It enables direct access to hardware resources that enhance the efficiency and effectiveness of virtual machines. Also, it helps you achieve greater control over the infrastructure with minimal latency and maximized resource utilization. Avail unique advantages of Cantech’s bare metal hypervisors. Discuss your virtualization strategies with us!
FAQs about Bare Metal Hypervisors
What is a bare metal hypervisor?
A bare metal hypervisor is a layer of virtualization software. It runs directly on the physical hardware of a server to create and manage multiple virtual machines (VMs) with no host operating system in between.
What are the main advantages of using a bare metal hypervisor?
The main advantages of using a bare metal hypervisor include high performance, direct access to hardware resources, and improved security. It allows multiple virtual machines to run simultaneously in an efficient way. It ensures minimal latency and the best resource usage.
How does a bare metal hypervisor differ from a hosted hypervisor?
A bare metal hypervisor operates directly on the server hardware On the other hand, a hosted hypervisor runs on top of an existing operating system. Thus, bare metal hypervisors provide better performance and resource allocation compared to hosted hypervisors.
